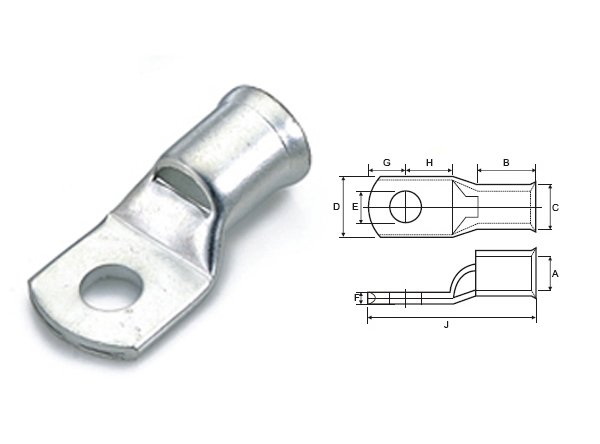

Nexus Metal & Alloys manufacture and export Crimping Type Copper Tubular Cable Terminal Ends - Bell Mouth. We manufacture a wide range of Crimping Type Copper Tubular Cable Terminal Ends - Bell Mouth from soft drawn, pure, high conductivity copper tubes conforming to BS 1977. These are also produced from aluminum tube. They are fully annealed to ensure qualities of electrical and mechanical strength.
We manufacture a wide range of Be ll Mouth - Crimping Type Copper Tubular Cable Terminal Ends from soft drawn, pure, high conductivity copper tubes conforming to BS 1977. These are also produced from aluminium tube. They are fully annealed to ensure qualities of electrical and mechanical strength. This product complies with all current EU & International harmonised standards. Crimping Type Copper Tubular Cable Terminal Ends Bell Mouth specifications as below, Any kind of special Crimping Type Copper Tubular Cable Terminal Ends Bell Mouth can be developed and supplied exactly as per customer specifications and requirement.
| Prod. Code | Cable mm2 | Stud Hole E | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|
| I | O | B | P | C | D | L | |||
| NTB -10- 5 | 10 | M5.2 | 4.5 | 6.2 | 10 | 11 | 6 | 7 | 26 |
| NTB -10- 6 | 10 | M6.5 | 4.5 | 6.2 | 10 | 11 | 6 | 7 | 26 |
| NTB - 10- 8 | 10 | M8.4 | 4.5 | 6.2 | 10 | 12 | 6 | 9 | 28 |
| NTB - 10- 10 | 10 | M10.5 | 4.5 | 6.8 | 11 | 15 | 8 | 11 | 33 |
| NTB - 10- 12 | 10 | M13 | 4.5 | 6.8 | 11 | 18 | 9 | 11 | 36 |
| NTB - 16- 5 | 16 | M5.2 | 5.4 | 7.1 | 12 | 12 | 7 | 7 | 30 |
| NTB - 16- 6 | 16 | M6.5 | 5.4 | 7.1 | 12 | 12 | 7 | 7 | 30 |
| NTB - 16- 8 | 16 | M8.4 | 5.4 | 7.1 | 12 | 12 | 7 | 7 | 30 |
| NTB - 16- 10 | 16 | M10.5 | 5.5 | 7.6 | 12 | 15 | 8 | 12 | 36 |
| NTB - 16- 13 | 16 | M13 | 5.5 | 7.6 | 12 | 17 | 11 | 13 | 39 |
| NTB - 16- 16 | 16 | M17 | 5.5 | 7.6 | 12 | 21 | 13 | 14 | 44 |
| NTB - 20- 8 | 20 | M8.4 | 6 | 7.7 | 12 | 12 | 7 | 7 | 32 |
| NTB - 25- 6 | 25 | M6.5 | 6.8 | 8.8 | 12 | 13 | 7 | 7 | 30 |
| NTB - 25- 8 | 25 | M8.4 | 6.8 | 8.8 | 12 | 13 | 7 | 7 | 30 |
| NTB - 25- 10 | 25 | M10.5 | 6.8 | 8.8 | 13 | 15 | 10 | 11 | 38 |
| NTB - 25- 12 | 25 | M13 | 6.8 | 9.2 | 15 | 17 | 10 | 12 | 41 |
| NTB - 25- 16 | 25 | M17 | 6.8 | 9.2 | 15 | 21 | 13 | 14 | 47 |
| NTB - 35- 6 | 35 | M6.5 | 8.2 | 10.6 | 13.5 | 15.3 | 9 | 9 | 37 |
| NTB - 35- 8 | 35 | M8.4 | 8.2 | 10.6 | 13.5 | 15.3 | 9 | 9 | 37 |
| NTB - 35- 10 | 35 | M10.5 | 8.2 | 10.6 | 13.5 | 15.3 | 9 | 9 | 37 |
| NTB - 35- 12 | 35 | M13 | 8.2 | 10.6 | 13.5 | 15.3 | 10 | 12 | 41 |
| NTB - 35- 16 | 35 | M17 | 8.2 | 10.6 | 15 | 22 | 13 | 14 | 47 |
| NTB - 50- 6 | 50 | M6.5 | 9.5 | 12.4 | 17 | 17.8 | 9 | 10 | 42 |
| NTB - 50- 8 | 50 | M8.4 | 9.5 | 12.4 | 17 | 17.8 | 9 | 10 | 42 |
| NTB - 50- 10 | 50 | M10.5 | 9.5 | 12.4 | 17 | 17.8 | 9 | 10 | 42 |
| NTB - 50- 13 | 50 | M13 | 9.5 | 12.4 | 17 | 20 | 10 | 12 | 45 |
| NTB - 50- 14 | 50 | M14.5 | 9.5 | 12.4 | 18 | 22 | 15 | 15 | 54 |
| NTB - 50- 16 | 50 | M17 | 9.5 | 12.4 | 18 | 22 | 15 | 15 | 54 |
| NTB - 50- 20 | 50 | M21 | 9.5 | 12.4 | 18 | 26 | 16 | 18 | 60 |
| NTB - 70- 8 | 70 | M8.4 | 11..3 | 14.6 | 18.5 | 21 | 11 | 11 | 47 |
| NTB - 70- 10 | 70 | M10.5 | 11.3 | 14.6 | 18.5 | 21 | 11 | 11 | 47 |
| NTB - 70- 12 | 70 | M13 | 11.3 | 14.6 | 18.5 | 21 | 11 | 11 | 47 |
| NTB - 70- 14 | 70 | M14.5 | 11.3 | 14.6 | 18.5 | 22 | 14 | 15 | 55 |
| NTB - 70- 16 | 70 | M17 | 11.3 | 14.6 | 18.5 | 26 | 14 | 16 | 56 |
| NTB - 70- 20 | 70 | M21 | 11.3 | 14.6 | 18.5 | 28 | 16 | 18 | 63 |
| NTB - 95- 8 | 95 | M8.4 | 13.5 | 17.4 | 21 | 25 | 12 | 13 | 53 |
| NTB - 95- 10 | 95 | M10.5 | 13.5 | 17.4 | 21 | 25 | 12 | 13 | 53 |
| NTB - 95- 12 | 95 | M13 | 13.5 | 17.4 | 21 | 25 | 12 | 13 | 53 |
| NTB - 95- 14 | 95 | M14.5 | 13.5 | 17.4 | 22 | 25 | 14 | 15 | 55 |
| NTB - 95- 16 | 95 | M17 | 13.5 | 17.4 | 22 | 25 | 14 | 16 | 56 |
| NTB - 95- 20 | 95 | M21 | 13.5 | 17.4 | 22 | 28 | 15 | 16 | 63 |
| NTB - 120- 8 | 120 | M8.4 | 15 | 19.4 | 23 | 28 | 13 | 14 | 60 |
| NTB - 120-10 | 120 | M10.5 | 15 | 19.4 | 23 | 28 | 13 | 14 | 60 |
| NTB - 120-12 | 120 | M13 | 15 | 19.4 | 23 | 28 | 13 | 14 | 60 |
| NTB - 120-14 | 120 | M14.5 | 15 | 19.4 | 23 | 28 | 13 | 14 | 60 |
| NTB - 120-16 | 120 | M17 | 15 | 19.4 | 23 | 28 | 16 | 16 | 64 |
| NTB - 120-20 | 120 | M21 | 15 | 19.4 | 23 | 28 | 16 | 20 | 68 |
| NTB -150 - 8 | 150 | M8.4 | 16.5 | 21.2 | 27 | 30 | 16 | 16 | 70 |
| NTB -150- 10 | 150 | M10.5 | 16.5 | 21.2 | 27 | 30 | 16 | 16 | 70 |
| NTB -150- 12 | 150 | M13 | 16.5 | 21.2 | 27 | 30 | 16 | 16 | 70 |
| NTB -150- 14 | 150 | M14.7 | 16.5 | 21.2 | 27 | 30 | 16 | 16 | 70 |
| NTB -150- 16 | 150 | M17 | 16.5 | 21.2 | 27 | 30 | 16 | 16 | 70 |
| NTB -150- 20 | 150 | M21 | 16.5 | 21.2 | 27 | 30 | 16 | 16 | 73 |
| NTB -185- 10 | 185 | M10.5 | 18.5 | 23.5 | 32 | 34 | 17 | 19 | 80 |
| NTB -185- 12 | 185 | M13 | 18.5 | 23.5 | 32 | 34 | 17 | 19 | 80 |
| NTB -185- 14 | 185 | M14.7 | 18.5 | 23.5 | 32 | 34 | 17 | 19 | 80 |
| NTB -185-16 | 185 | M17 | 18.5 | 23.5 | 32 | 34 | 17 | 19 | 80 |
| NTB -185- 20 | 185 | M21 | 18.5 | 23.5 | 32 | 34 | 17 | 19 | 80 |
| NTB -240- 10 | 240 | M10.5 | 21 | 26.5 | 39 | 38 | 20 | 21 | 94 |
| NTB -185- 12 | 240 | M13 | 21 | 26.5 | 39 | 38 | 20 | 21 | 94 |
| NTB -185- 14 | 240 | M14.5 | 21 | 26.5 | 39 | 38 | 20 | 21 | 94 |
| NTB -185- 16 | 240 | M17 | 21 | 26.5 | 39 | 38 | 20 | 21 | 94 |
| NTB -185- 20 | 240 | M21 | 21 | 26.5 | 39 | 38 | 20 | 21 | 94 |
