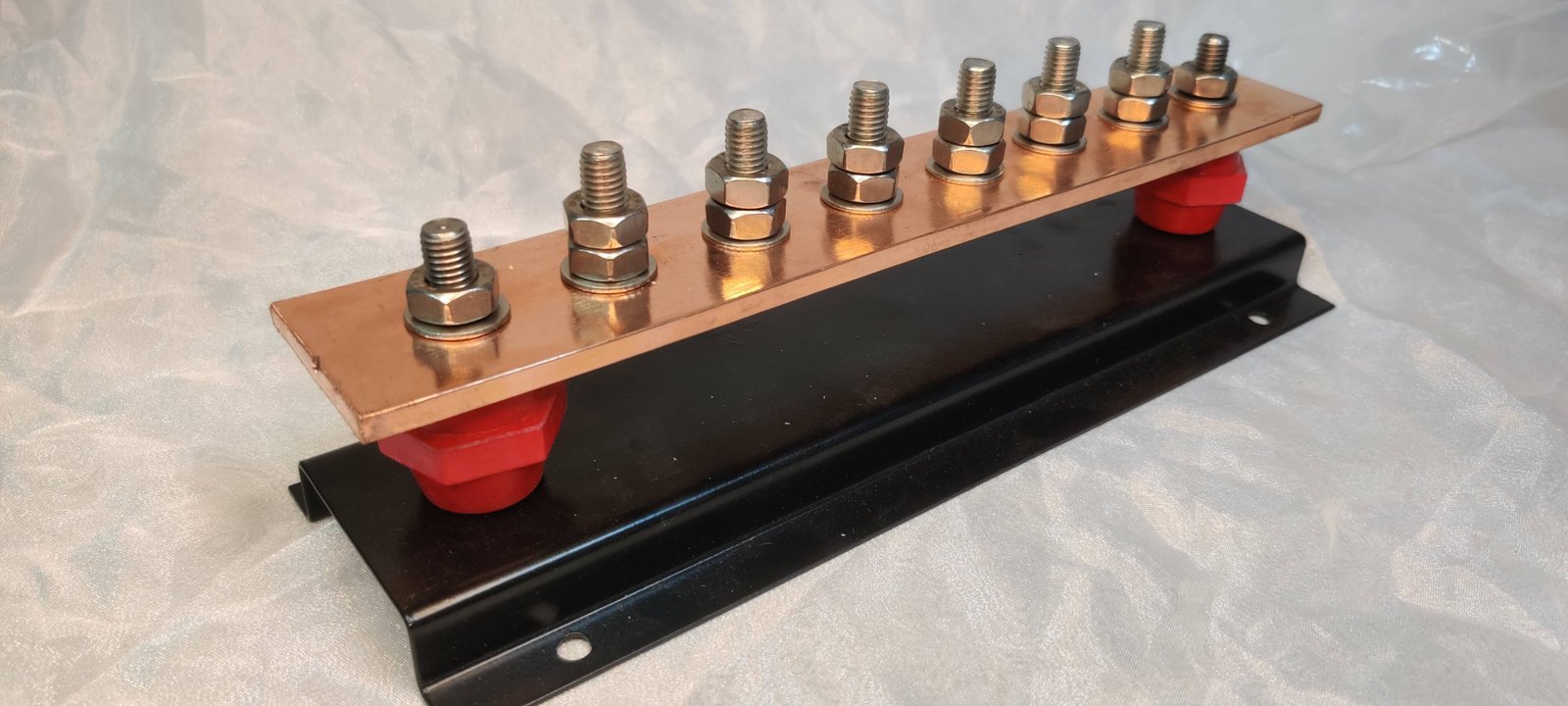

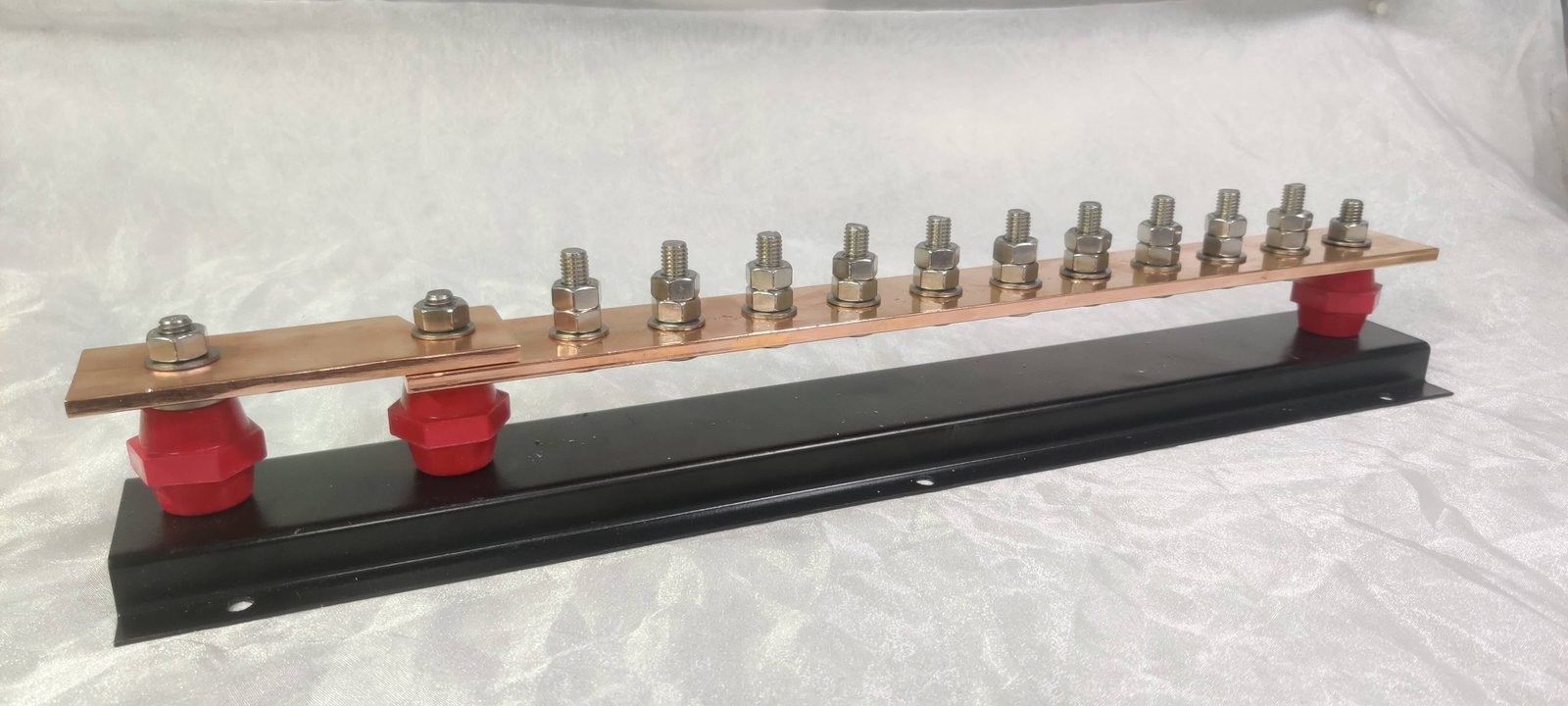

Standard Earth Bar

Lightning Protection Earth Bars | Surge Protection Earthing Links | Copper Cladded Mats Copper Earth Bar Disconnecting Link

Nexus Metal & Alloys manufactures, exports and supplies Standard Earth Bar. The standard connections are M10. Other sizes are available upon request. Also available in Tin Plating on request.

The standard connections are M10. Other sizes are available upon request. Also available in Tin Plating on request.

Material: 50x6 mm Hard Drawn Copper Bar
Base : Steel Powder Coated (Colour - Black)
Fasteners : Stainless Steel 316L (other grade on request)

Specification

PRODUCT CODE DESCRIPTION DIMENSIONS (MM) L x W x H
NEB6 6 WAY EARTH BAR 300 x 90 x 90
NEB8 8 WAY EARTH BAR 450 x 90 x 90
NEB10 10 WAY EARTH BAR 450 x 90 x 90
NEB12 12 WAY EARTH BAR 520 x 90 x 90
NEB14 14 WAY EARTH BAR 650 x 90 x 90
NEB16 16 WAY EARTH BAR 650 x 90 x 90
NEB18 18 WAY EARTH BAR 800 x 90 x 90
NEB20 20 WAY EARTH BAR 800 x 90 x 90
NEB22 22 WAY EARTH BAR 900 x 90 x 90
NEB24 24 WAY EARTH BAR 1050 x 90 x 90
NEB26 26 WAY EARTH BAR 1050 x 90 x 90
NEB28 28 WAY EARTH BAR 1250 x 90 x 90
NEB30 30 WAY EARTH BAR 1250 x 90 x 90

Features

  • CPRI Tested
  • It is long-lasting and free from maintenance
  • Unique manufacturing process ensures uniform copper coating thickness
  • It is easy to install and is unbreakable
  • Corrosion free while providing the lowest resistance to ground
  • Variable choices are manufactured in order to meet the customers demand
  • Convenient installation and very beautiful appearance.
  • Purity of the copper is 99.9%. Thus the conduct ability is very good.

Advantage

  • Corrosion resistant surface
  • Excellent electrical and thermal conductivity
  • Advanced technology with effective engineering
  • Easy to install

Industries

  • Electrical Industry
  • Cements Industry
  • Electrical Contractor
  • Electrical Equipments
  • Manufacturing Industries
  • Sugar and paper Industry
  • Petrol & Chemical Industry
