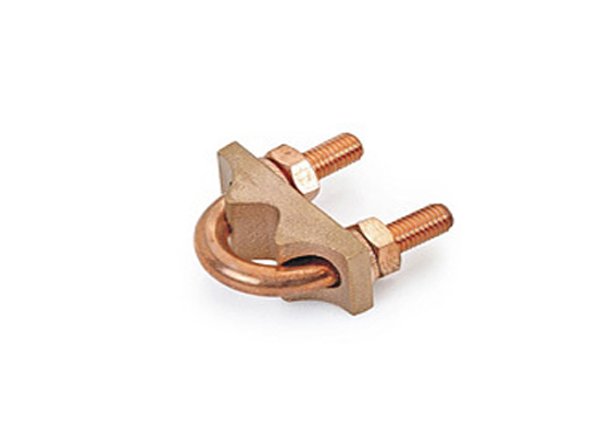

Rod To Tape Clamp : U Bolt Single Plate Type

Copper Alloy U Bolt Clamp | Copper Alloy Rod To Tape Clamp : U Bolt Double Plate Type

Nexus Metal & Alloys manufactures, exports and supplies this adaptable scope of U Bolt Clamps that can be utilized to associate flat tapes and stranded cables to earth rods, strengthening bars (re-bar), hand rails and so on. Nexus Metal and Alloys bar to tape sort "U" Bolt single plate clamp are intended to join different sizes of conductor tape to the earth electrode. These are produced using copper with gunmetal plate. They can be supplied for every one of the rods from 5/8" to 1' and copper tape.

The clamps have a high imperviousness to corrosion and are mechanically solid to guarantee an enduring association.

  • Material : Body - Gunmetal
  • ‘U' bolt material - Copper Alloy

Specification

PRODUCT CODE ROD DIA (MM) HOLE CENTRES (MM) WEIGHT (Kg)
NUU16 5/8 : 16 37 0.20
NUU20 3/4 : 20 37 0.21
NUU25 1 : 25 37 0.22

Features

  • It is long-lasting and free from maintenance
  • Unique manufacturing process ensures uniform copper coating thickness
  • It is easy to install and is unbreakable
  • Corrosion free while providing the lowest resistance to ground
  • Variable choices are manufactured in order to meet the customers demand
  • Convenient installation and very beautiful appearance.
  • Purity of the copper is 99.9%. Thus the conduct ability is very good.

Advantage

  • Corrosion resistant surface
  • Excellent electrical and thermal conductivity
  • Advanced technology with effective engineering
  • Easy to install

Industries

  • Electrical Industry
  • Cements Industry
  • Electrical Contractor
  • Electrical Equipments
  • Manufacturing Industries
  • Sugar and paper Industry
  • Petrol & Chemical Industry
