About Us

Earth Boss

Mild Steel Earth Boss | DIN Standard Mild Steel Earth Boss | Earth Boss Strap. ASTM Standard Mild Steel Earth Boss | High Quality Mild Steel Earth Boss

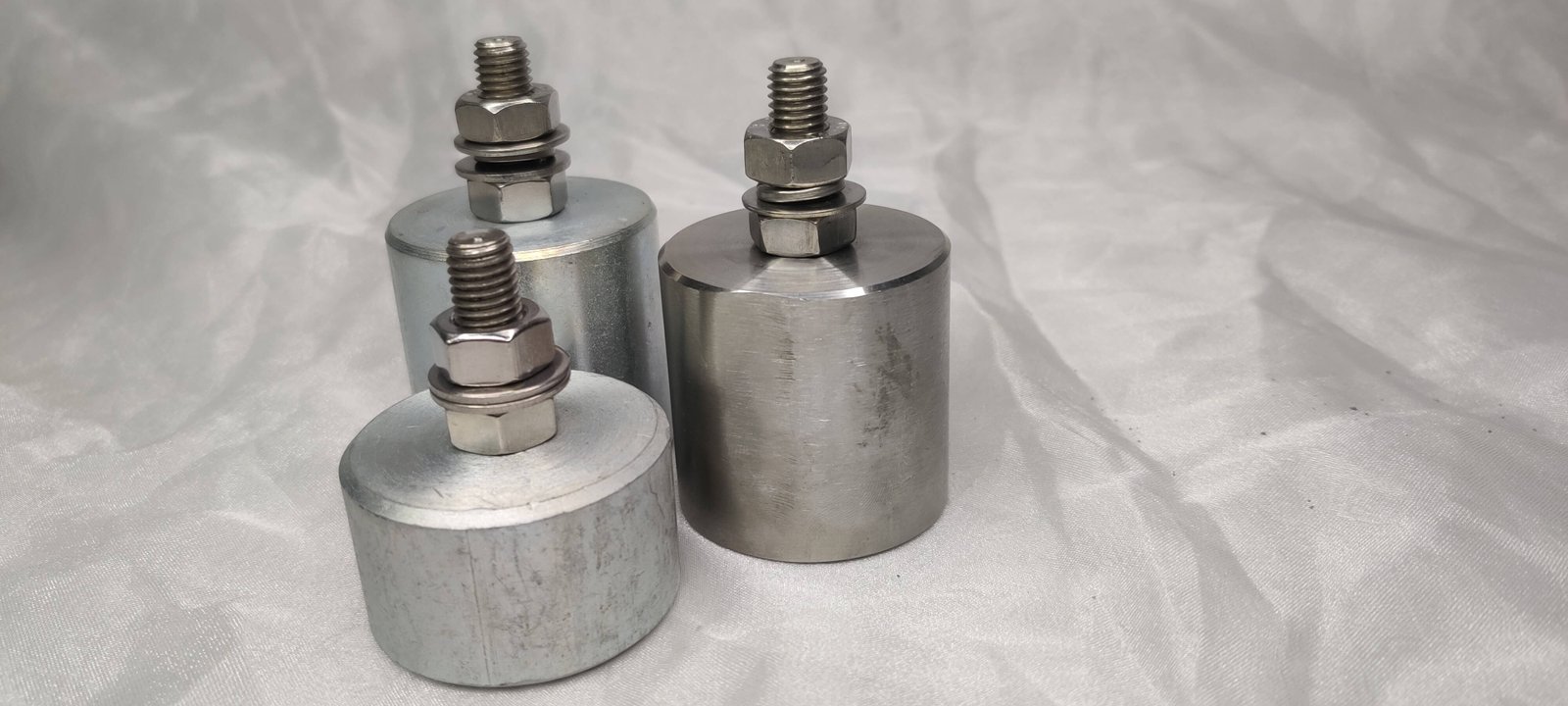

Nexus Metal & Alloys manufactures, exports and supplies Earth Bosses for welding to steel vessels, tanks and structures and so forth. Comes complete with A2 Stainless Steel dowel, flat washer, spring washer and two nuts. Associations with be wrapped with Denso tape to stop entrance of dampness. Phosphor Bronze fixing assembly is available upon request. Add “/PB” to the end of the Part Number to specify Phosphor Bronze Assembly.

Other Earth Boss sizes, material sort, setup and so forth accessible upon solicitation.

  • Material: Mild Steel.

Specification

PRODUCT CODE
DIAMETER (MM) LENGTH (MM) THREAD SIZE
WEIGHT (Kg)
NEB25M08 25 25 M08 0.09
NEB30M08 30 30 M08 0.16
NEB30M10 30 30 M10 0.18
NEB40M10 40 40 M10 0.41
NEB40M12 40 40 M12 0.43
NEB50M10 50 50 M10 0.78
NEB50M12 50 50 M12 0.78

Features

  • CPRI Tested
  • It is long-lasting and free from maintenance
  • Unique manufacturing process ensures uniform copper coating thickness
  • It is easy to install and is unbreakable
  • Corrosion free while providing the lowest resistance to ground
  • Variable choices are manufactured in order to meet the customers demand
  • Convenient installation and very beautiful appearance.
  • Purity of the copper is 99.9%. Thus the conduct ability is very good.

Advantage

  • Corrosion resistant surface
  • Excellent electrical and thermal conductivity
  • Advanced technology with effective engineering
  • Easy to install

Industries

  • Electrical Industry
  • Cements Industry
  • Electrical Contractor
  • Electrical Equipments
  • Manufacturing Industries
  • Sugar and paper Industry
  • Petrol & Chemical Industry
