CW Cable Gland (3 Part)

BW Cable Gland - 3 Part | Brass Flexible adapters |Aluminium Cable Glands | Alco Cable Glands | G Type Cable Glands | PG Cable Glands | E1W Glands | Marine Cable Glands

Nexus Metal & Alloys manufactures, exports and supplies CW Cable Gland - 3 Part or CW Glands 3 section. Our scope of Cable Glands and Brass things additionally incorporates CW Glands. These are made of Brass. This scope of CW cable glands is produced from high grade crude materials and is utilized as a part of both indoor and open air applications. Further, these can maintain in substantial to ordinary climate hence guaranteeing ideal execution. These link organs secure electrical congruity amongst love and organ passage part.

For use with armoured cable, secures armouring and provides electrical continuity between armour and gland entry component. Also provides a seal on the outer sheath of the cable thus ensuring no damage to cable sheathing. These are used both indoor and outdoor, in all climatic conditions as it is weatherproof & waterproof.

Technical Specifications

  • Secures armoring and provides electrical continuity between armour and gland entry component
  • Also provides a seal on the outer sheath of the cable thus ensuring no damage to cable sheathing/li>

Design Feature

  • 2 part Armour/Earth Lock, Knurled Armour Lock produces a low resistance earth clip

Specification

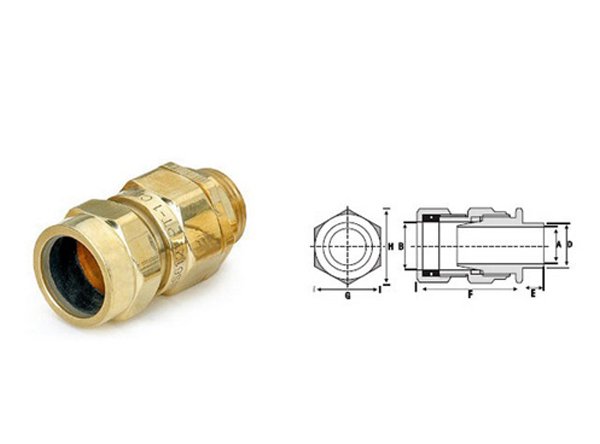

Product Code Size Cable Dimensions Accomodate Gland Dimensions
Under Armour Dia. A Max. mm overall Dia. B Max. mm Armour wire dia. C mm
ISO Entry
Thread
Dia.       Length
Approx from  shoulder   F mm
Hexagon Size
Across flat   Across Corners
D mm E mm G mm H mm
NCW - 16 16 8.60 13.50 0.90 16 10 40.00 20.00 23.00
NCW - 20S 20S 12.50 17.00 0.90/1.25 20 10 47.00 22.00 29.00
NBW - 20 20 14.40 20.50 0.90/1.25 20 10 47.00 26.00 29.00
NCW - 25S 25S 17.80 23.80 1.25/1.60 25 10 50.00 31.00 34.00
NCW - 25 205 20.40 27.00 1.25/1.60 25 10 50.00 34.00 38.50
NCW - 32 32 26.50 33.00 1.60/2.00 32 10 55.00 41.50 46.50
NCW - 40S 40S 31.00 37.00 1.60/2.00 40 15 60.00 45.00 50.00
NCW - 40 40 32.50 40.80 1.60/2.00 40 15 60.00 49.00 54.00
NCW - 50S 50S 37.80 45.00 2.00/2.50 50 15 65.00 51.00 64.00
NCW - 50 50 44.00 51.50 2.00/2.50 50 15 65.00 62.30 69.50
NCW - 63S 63S 50.50 60.50 2.50 63 15 70.00 70.00 78.00
NCW - 63 63 56.50 65.50 2.50 63 15 70.00 76.30 85.00
NCW - 75S 75S 62.50 72.00 2.50 75 15 75.00 85.00 95.00
NCW - 75 75 67.50 78.50 2.50/3.15 75 15 75.00 91.00 112.00
NCW - 90 90 80.00 90.00 3.15 90 20 90.00 103.00 115.00

Industries

  • Electrical Industry
  • Cements Industry
  • Electrical Contractor
  • Electrical Equipments
  • Manufacturing Industries
  • Sugar and paper Industry
  • Petrol & Chemical Industry
