Copper Cable Terminal Ends With Extended Palm (2 Hole)

Tubular Compression Copper Connection Long Barrel | Copper One Hole Offset Tongue Terminal Ends / Connectors | Long Barrel Terminal Ends in Copper / Long Barrel Cable Lugs

Nexus Metal & Alloys manufacture and export BW Industrial Gland 3 Part/BW Industrial Cable Gland/BW Industrial Glands. Our scope of Cable Glands and Brass things likewise incorporates BW Glands. These are made of Brass. It is comparative in application and outline to the BW (2 section) organ. In any case, an additional segment is included, a cone ring. This anticipates turn of the wire and is utilized rather than a knurled cone.

Our range of Copper Cable Terminal Ends with Extended Palm (2 Hole) is in compliance with the demands of a majority of end user's. This also comply with electrical specification are in accordance with the general requirement's. Moreover, we also can offer Initial/Final Resistance, Tensile “Pull Off” test and Cycling Periods, if necessary. We also manufacture the following terminals as per DIN standards:

  • Copper sealing ferrules as per DIN 46228
  • Copper Tubular terminals as per DIN 40500
  • Copper Tubular terminals as per DIN 46235

  • Material : E - Copper
  • Finish : Copper / Electro Tinned

Specification

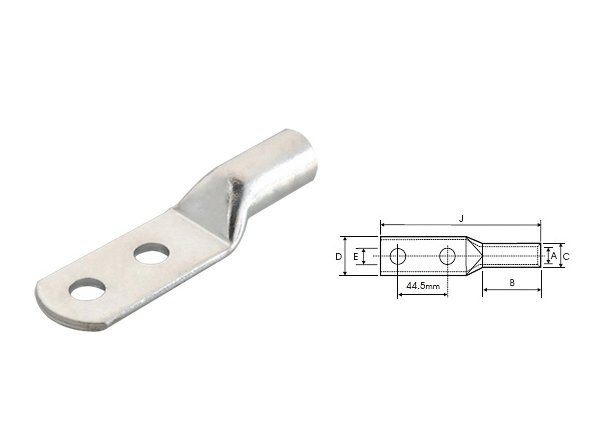

Prod. Code Cable mm2 Stud Hole E Dimensions
A C D B J
NT16 2E10 16 10.5 5.4 7.6 14.5 16 100
NT252E10 25 10.5 6.8 8.8 15 16 100
NT352E10 35 10.5 8.2 10.6 16.5 16 100
NT502E10 50 10.5 9.5 12.4 17 25 109
NT50 2E12   13 9.5 12.4 17 25 109
NT702E10 70 10.5 11.3 14.7 21 30 114
NT70 2E12   13 11.3 14.7 21 30 114
NT95 2E10 95 10.5 13.5 17.4 25 30 116
NT95 2E12   13 13.5 17.4 25 30 116
NT120 2E10 120 10.5 15 19.4 27.5 35 122
NT120 2E12   13 15 19.4 27.5 35 122
NT150 2E10 150 10.5 16.5 21.2 30 40 126
NT150 2E12   13 16.5 21.2 30 40 126
NT185 2E10 185 10.5 18.5 23.5 33.5 42 132
NT185 2E12   13 18.5 23.5 33.5 42 132
NT240 2E10 240 10.5 21 26.5 38.5 50 143
NT2402E12   13 21 26.5 38.5 50 143
NT3002E10 300 13.7 23.5 30 43 55 144
NT4002E10 400 13.7 28.5 36.5 52.5 60 149
NT5002E10 500 13.7 30 39 56 65 160
NT6302E10 630 13.7 35 45 36.8 75 160

Features

  • CPRI Tested
  • Safe & low cost both in and use.
  • All copper products are electro-tinned to BS standard and Wis prevents it from corrosion and oxidation.
  • PVC insulation is provided to terminals for exceptional di-electric strength & for supporting. We use wire insulation at the base of the terminal thereby ensuring that no bare wire is exposed.
  • It also provides circumferential insulation support to the wire and prevents the loss of connects due to vibration, or flexing in use.

Industries

  • Electrical Industry
  • Cements Industry
  • Electrical Contractor
  • Electrical Equipments
  • Manufacturing Industries
  • Sugar and paper Industry
  • Petrol & Chemical Industry
